क्रॉपमास्टर ४००(हाइड्रोलिक)

ट्रैक्टर हाइड्रोलिक पावर की मदद से बूम स्पैन आसानी से फोल्ड हो जाता है (हाइड्रोलिक बूम के लिए लागू)

उपयुक्त फसलें: सोयाबीन, अरहर, मिर्च, कपास, गन्ना इत्यादी.

  • टॅंक: 400 लीटर
  • पंप: 55 एलपीएम डायाफ्राम
  • नोजल: 16 नोजल
  • बूम स्पैन चौड़ाई: 24 फीट
  • ऊंचाई समायोजन: 6 फीट तक
  • ट्रैक्टर :- 40 एचपी और उपर
Description

फसल स्प्रेयर

  • Boom Sprayer
  • Tractor Boom Sprayer
  • Tractor Operated Sprayer

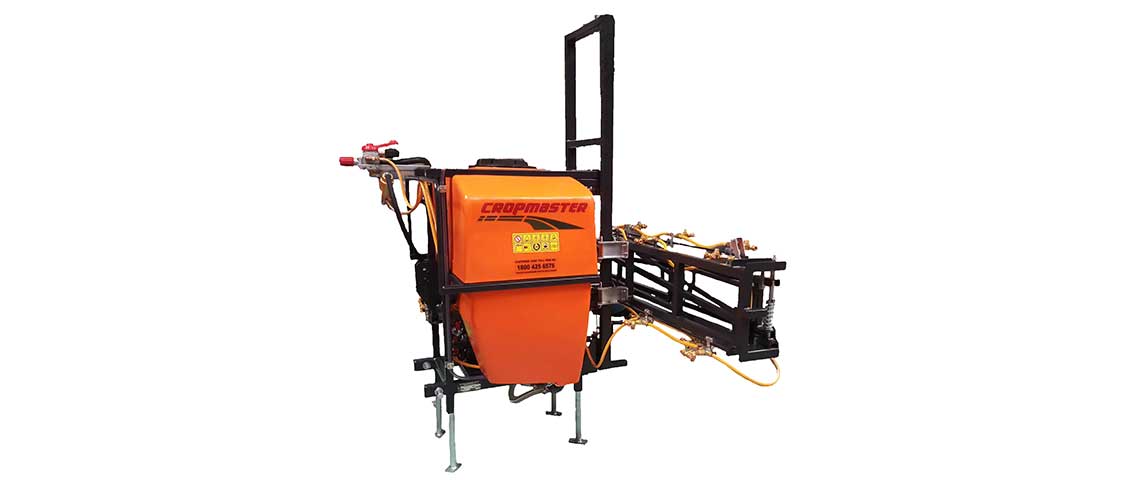

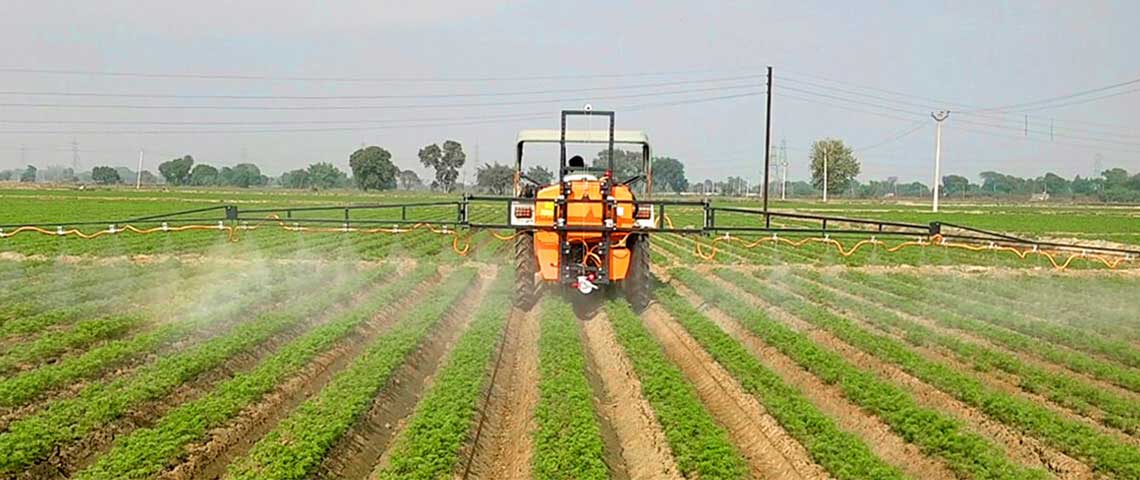

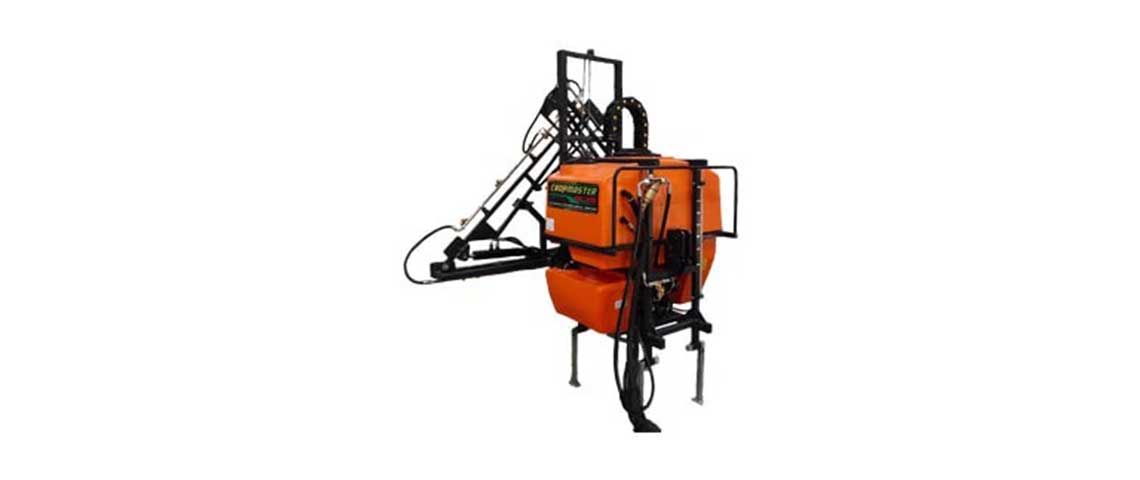

Mitra Cropmaster is a Tractor Boom Sprayer that comes with an attached 3 point linkage. This sprayer is easy for mounting or dismounting from the tractor due to 3 point link attachment. The Cropmaster has 200lit & 400lit variants, where the 400lit main tank variant has a 40lit rinsing tank and a 10lit hand wash tank for clean water. The Mitra Boom Sprayer works on tractors of 18 HP and above by providing uniform coverage and gives the best protection to your crop. This Boom Sprayer is useful for spraying on all ground crops like Soybean, Tur, Chilli, Cotton, and more. Tractor Boom Sprayer comes with the winch mechanism for boom height adjustment up to 6 feet, which is useful in all kinds of crops like cotton with 4 to 5 feet height and also crops like Soybean, Gram, and more. It has a 2-way adjustable brass nozzle, which gives adjustable spacing as per crop row spacing with the ability of the nozzle to switch on and shut off.

The pressure relief valve provided with the Tractor Boom Sprayer reduces the pump’s excessive pressure, which prevents the pump from any damage. The Tractor Power Sprayer comes with a 5-mode controller and 2-way nozzles, which provides accurate delivery of chemicals. In this Boom Sprayer, a back folding option is provided for easy operation. A Diaphragm Pump with 55 LPM provides continuous water flow without pulsation, and it is designed for applications of spraying pesticides and chemicals. The diaphragm pump has less maintenance due to the minimum moving parts. The power source is the Tractor PTO shaft, which transmits the tractor’s power to the machine by a straight angle of the PTO shaft. The tractor boom sprayer prices are very much affordable in comparison with other sprayers in the market

फसल स्प्रेयर

लाभ

  • Government subsidy available
  • Loan facility available with attractive interest rate
  • Doorstep Service
  • Proven Chemical and labor saving
  • Useful for all type of ground crops.
  • Uniform coverage giving best crop protection
  • Installation by the trained service engineer
  • 1-year warranty with free service*
  • Boom span can cover up to 40 feet wide area in single round
  • 5-mode controller and two way nozzles provides accurate delivery of chemicals
  • Diaphragm pump to eliminate pulsation in sprayer

विशेषताएँ

  • Easy Height Adjustment – up to 6 ft with the help of Winch Mechanism
  • Adjustable nozzle spacing as per crop
  • Safety Device- PRV: Reduces excess pressure from the Pump
  • It is available in 200L and 400L variants

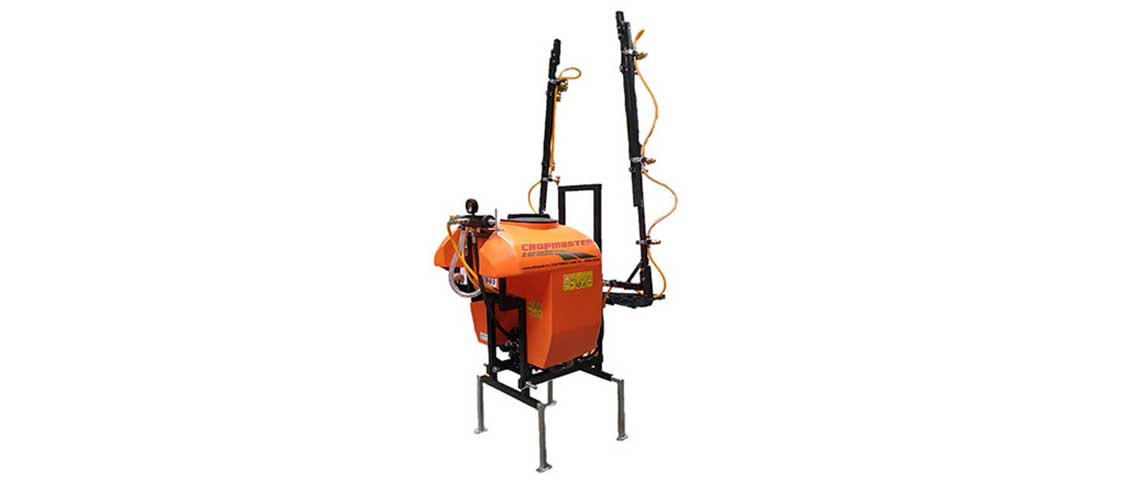

  • Back folding – for easy operation

तकनीकी विशेषताए

कॉपमास्टर सीरीज

पैरामीटर क्रॉपमास्टर 400 – हाइड्रोलिक
Tank 400 Litre
Pump 55 LPM Diaphragm
Nozzles 16 Nozzles
Boom Span Width 24 feet
Height Adjustment up to 6 ft
Tractor HP 40 HP Above
