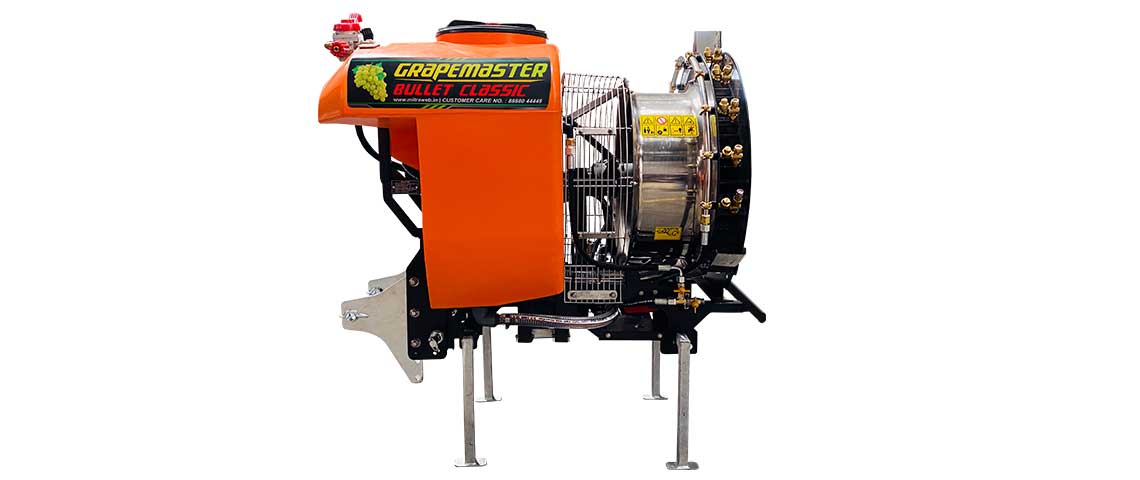

Air Assisted Sprayer

The Grapemaster Bullet Classic sprayer comes with a rear air conveyor, which provides perfect air balancing with the highest air output and low power consumption. An air conveyor system made with stainless steel material consists of a shell, fins, backplate, bottom baffle, and deflectors. The Orchard Sprayer is provided with a compact tank having a 200lit tank capacity which is useful for the farm, where the turning radius is constrained. The Bullet Sprayer is equipped with a tank which has a rear-side water level indicator for showing the water level and it also has an agitation system, it maintains the constant chemical concentration during spraying on the field. The basket mixture is provided for mixing the dry powders to prepare the spraying water solution.

Mitra’s Bullet Sprayer is designed in such a way that it can overcome the problem of lowest turning radius in the low-spacing vineyards. It is directly mounted over the tractor with the help of specially designed mounting plates. Mitra Agro Equipment has taken care of safety by providing safety devices like a rear bumper to protect the shell assembly from any accidents. A pressure relief valve automatically opens at 40 bar pressure to protect the pump from excessive pressure damage. The most important benefits of this Tractor Operated Sprayer are that it is equipped with a manually operated controller, giving the accurate delivery of chemicals while spraying. The Spraying Solutions are filtered with the help of a Suction Filter and it passes through the high-quality brass nozzles.

This Vineyard Sprayer works on tractor PTO power and is transmitted by a straight angle PTO shaft to the machine. This shaft is connected to the pump input shaft and which transfers the power through output shaft to bearing block through the belt pulley mechanism.
